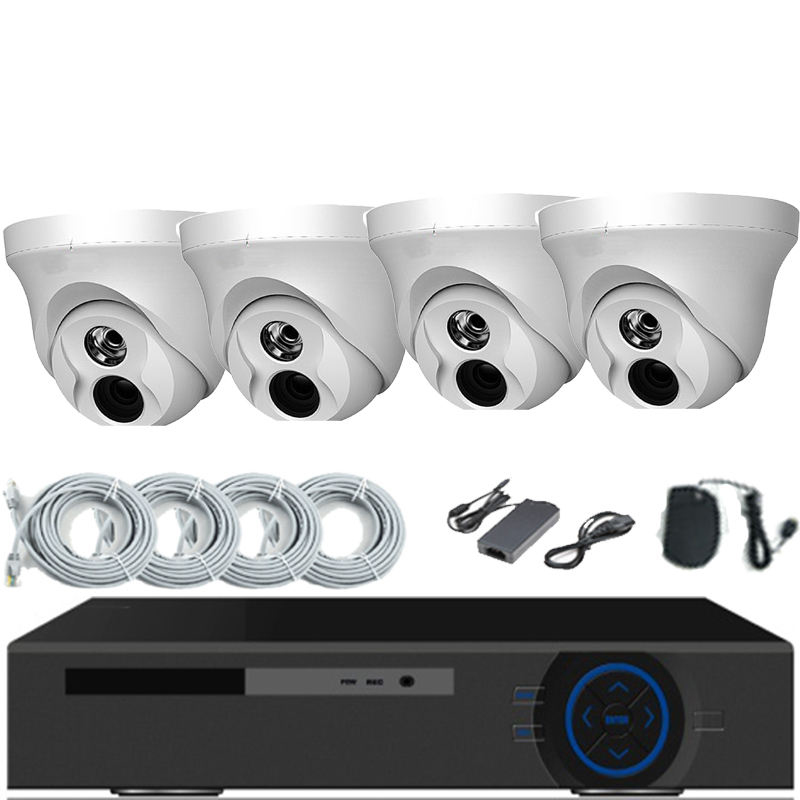

Customized 4pcs Dome Cameras 4CH NVR Kit CCTV Surveillance Security Camera System

private mold : NO

products status : Stock

brand name : /

place of origin : Shanghai, China

Product name : CCTV Camera System

Color : Customizable

MOQ : 2 pieces

Price : CN¥1,454.54/pieces >=2 pieces

Contact Now

Product Description
Customized 4pcs Dome Cameras 4CH NVR Kit CCTV Surveillance Security Camera System
Customized 4pcs Dome Cameras 4CH NVR Kit CCTV Surveillance Security Camera System
Customized 4pcs Dome Cameras 4CH NVR Kit CCTV Surveillance Security Camera System
Customized 4pcs Dome Cameras 4CH NVR Kit CCTV Surveillance Security Camera System
Customized 4pcs Dome Cameras 4CH NVR Kit CCTV Surveillance Security Camera System
Specification


System

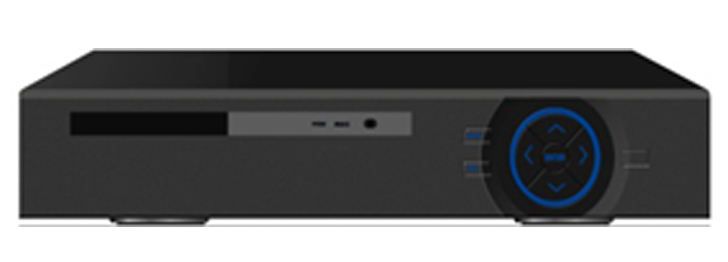

Model
NVR-7004
Main processor
Hi3515C
Operating System
Embedded Linux
System resources
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface
Operator interface
16-bit true color graphic menu operation interface, support mouse operation
Preview
1/4




Video
Video input (IP)
4*1080P/8*D1
Video standards
PAL(625TVL,50f/s);NTSC(525TVL,60f/s)
Video compression
H.264
Display quality
Max 1920*1080
Playback quality
1080P/D1
Decode
1*1080P
Motion detection
Support(depend on camera)

Audio
Audio compression
G.711A
Intercom
Unsupport

Record
&
playback
Recording mode
Manual>Alarm>Dynamic Detection>Timing
Local payback
1*1080P/4*D1
Search mode
Search by Time/Calendar/Event/Channel

Storage
&
Backup
Space occupation
Video:CIF 4~5G/day*channel, D1 8~10G/day*channel;960H 12G~20G/day*channel
720P 20~30G/day*channel; 1080P ~40G/day*channel;Audio:691.2M/day*channel
Record storage
HDD Network
Backup mode
Network backup, USB hard disk, USB burner, SATA burner

External
Video output
1ch VGA,1ch hd HD output
Audio I/O
0/0
Alarm I/O
0/0

interface
Network interface
1*RJ45 10M/100MAdaptive Ethernet port
USB interface
2*USB2.0 ports




General
HDD
1 SATA(Up to 6TB for each disk)
PTZ control
Control PTZ device by network
ONVIF
Support
Power supply
12V/3A
Power Consumption
<10W(Without HDD)
Work environment
Temperature:0-+55 , Humidity:10%-90%RH , Atm:86kpa-106kp
Dimension
233(L)* 300mm(W)* 45mm(H)
Weight
3KG
