Private Mold R940XA 4U Rack Server Super Computing Power System with Four-socket Processor

Shanghai Apying Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Private Mold R940XA 4U Rack Server Super Computing Power System with Four-socket Processor

private mold : Yes

products status : Stock

type : Rack

processor main frequency : Servers

processor type : Servers

brand name : /

model number : R940XA

place of origin : Shanghai, China

Product name : Servers

MOQ : 1PCS

Warranty : 1year

Lead Time : 1-3 Working Days

Package : Original Packaging

MOQ : 2 pieces

Price : CN¥16,606.46/pieces >=2 pieces

Contact Now

Product Description
Private Mold R940XA 4U Rack Server Super Computing Power System with Four-socket Processor
Private Mold R940XA 4U Rack Server Super Computing Power System with Four-socket Processor
Private Mold R940XA 4U Rack Server Super Computing Power System with Four-socket Processor
Private Mold R940XA 4U Rack Server Super Computing Power System with Four-socket Processor
Private Mold R940XA 4U Rack Server Super Computing Power System with Four-socket Processor
Private Mold R940XA 4U Rack Server Super Computing Power System with Four-socket Processor
Private Mold R940XA 4U Rack Server Super Computing Power System with Four-socket Processor
Specification
Product Description
Product Name
R940 SERVER
Processor
Up to four 2nd generation In tel Scalable processors, up to 28 cores per processor.
Storage controllers

Internal guidance
Internal controller: PERC H330, H730P, H740P, HBA330
External controller: H840, 12 Gbps SAS HBA, HBA355e
Software RAID: S140
Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSD 240 GB、480 GB
Internal dual SD module 1.
Drive bay
Front drive carrier: Up to eight 2.5 "SAS SATA (HDD/SSD), up to 61.44 TB or up to 24 2.5" SAS/SATA (HDD/SSD), up to 184.32 TB
Or up to 32 SAS/SATA (HDD/SSD), up to 4 NVME PCIe SSDs, up to 245.76 TB.
Power supply
Gold 1100 W - 48 VDC
Platinum: 1100W, 1100W 240 VDC2
1600W、2000W、2400W
Hot swap power supply with full redundancy option
6 hot swappable fans with N+1 redundancy.
Sizing
Outline specification: rack (4U)
Height: 174.3 mm (6.87 ")
Width: 441.16 mm (17.37 ")
Depth: 835.9 mm (32.9 ")
Weight: 56.0 kg (123.5 lb).
Memory
48 DDR4 DIMM sockets, support for RDIMM/LRDIMMs, up to 2933 MT/s, up to 6 TB
Up to 12 NVDIMMs, up to 384 GB –
Up to 24 Intel ® Aoteng ™ Permanent memory PMem, 12.28 TB maximum (15.36 TB maximum with PMem+LRDIMMs)
Only registered ECC DDR4 DIMMs are supported.
Embedded / At-Server
iDRAC9
iDRAC Direct.

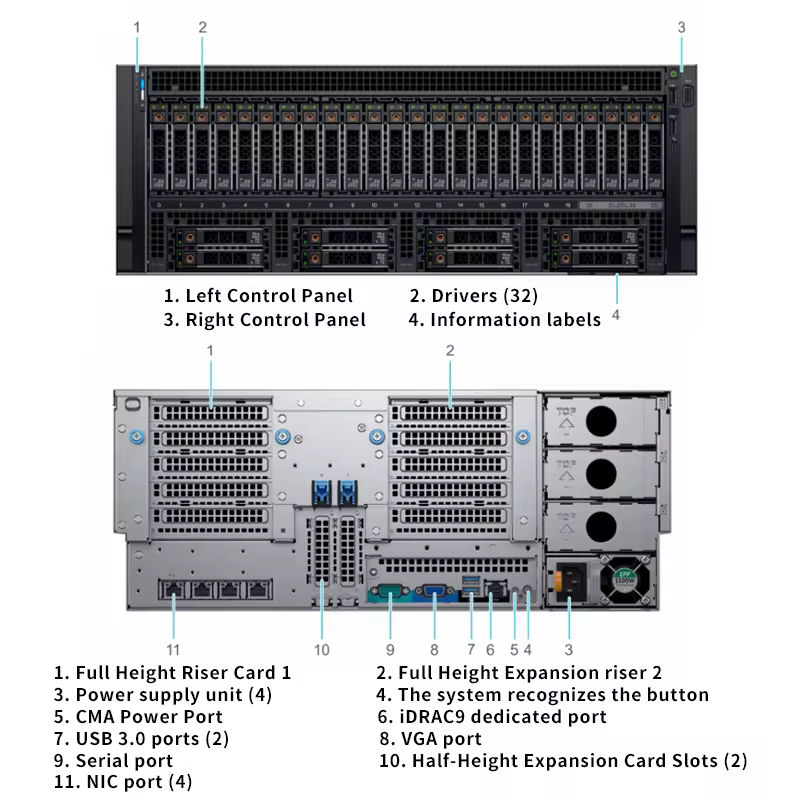

I/O & Ports
Network Daughter Card Options
4 x 1 GbE, 4 x 10 GbE, 2 x 10 GbE+2 x 1 GbE or
2 x 25 GbE
Front port: 1 x dedicated iDRAC direct
Micro-USB、2 x USB 2.0、1 x VGA。 (Optional 1 x USB 3.0 is only available on 8
Provided on the drive configuration)

Rear port: 1 x dedicated iDRAC network port, 1 x serial, 2 x USB 3.0
1 x VGA
Built in port: 1 USB 3.0
Video card: 2 VGA
PCIe: Up to 12 x 3.0 slots (6x16 slots or 2x16+10x8 slots).
GPU
Up to 4 double wide GPUs or up to 4 double wide
Or 8 single width full height FPGAs.
Supported Operations
system
Canonical® Ubuntu® LTS Citrix® Hypervisor Oracle® Linux with Hyper-V Microsoft Windows Server® LTSC Red Hat® Enterprise LinuxSUSE®
Linux Enterprise Server
VMware® ESXi
Weight
Gross weight: 46.9 kg.
