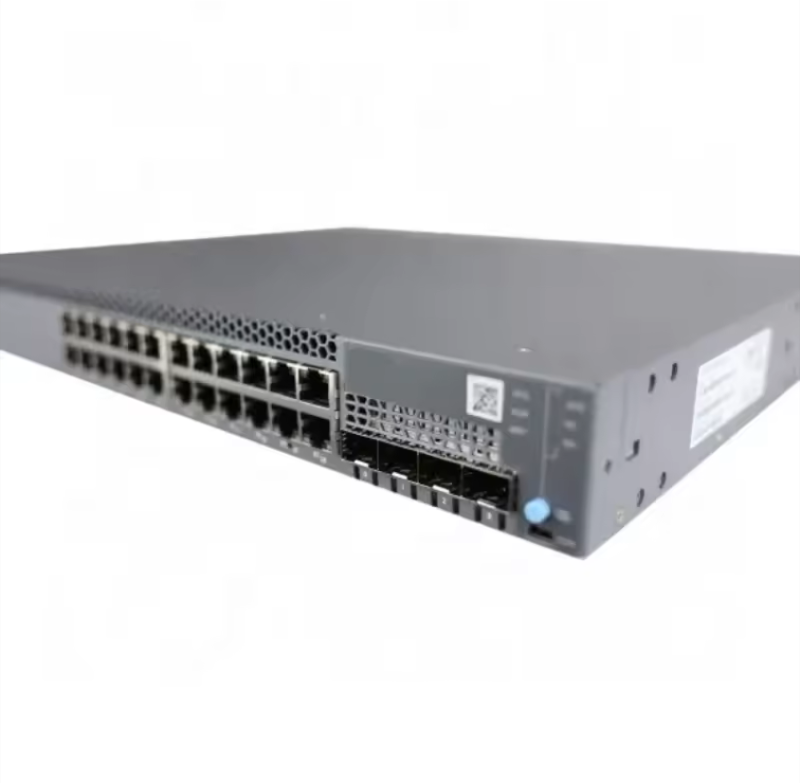

Customized EX3400-24P Ethernet POE Network Switch for Full-Duplex Half-Duplex Communication and Performance

Product Categories

Shanghai Apying Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

private mold : NO

products status : Stock

ports : 24

transmission rate : 10/100/1000Mbps

function : LACP, POE, QoS, SNMP

communication mode : Full-Duplex & Half-Duplex

switch capacity : /

brand name : /

model number : Ex3400-24p

place of origin : Shanghai, China

Size : Customized Size

Color : Customizable

Suitable for : Workstation, Laptop, Desktop

Price : CN¥7,940.72/pieces 1-99 pieces

Contact Now

Product Description

Dimensions (W x H x D)	17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit
Backplane speed	160 Gbps
Data rate	288 Gbps
Throughput	214 Mpps (wire speed)
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities	2
100GBASE C form-factor pluggable transceiver (CFP) port densities	N/A
Resiliency	Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration
Operating system	Junos OS
Traffic monitoring	sFlow
Quality-of-service (QoS) queues/port	8 unicast/4 multicast
MAC addresses	32,000
Jumbo frames	9216 bytes
IPv4 unicast/multicast routes	36,000/4,000
IPv6 unicast/multicast routes	18,000/2,000
Number of VLANs	4,096
ARP entries	16,000

Specification

Product Description

Company Profile

Packing & Delivery

FAQ

hotselling

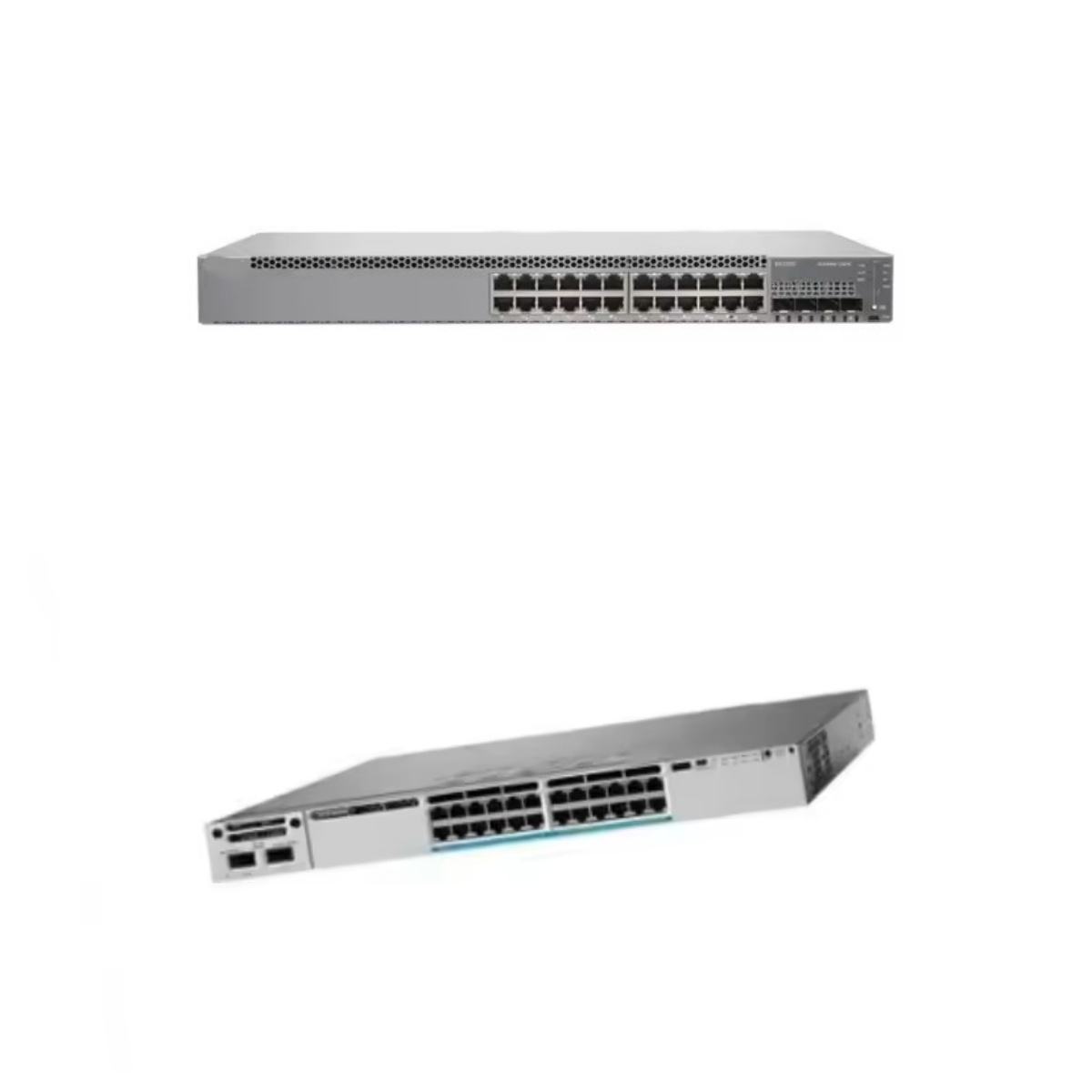

Customized EX3400-24P Ethernet POE Network Switch for Full-Duplex Half-Duplex Communication and Performance Images
