24 Port PoE Switch with 2x10 GBE Uplinks and Full-Duplex Half-Duplex Communication Ruckus ICX7150-24P-2X10G Entry-Level Access

Product Categories

Shanghai Apying Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

private mold : NO

products status : Stock

ports : 24

transmission rate : 10/100/1000Mbps

function : LACP, POE, QoS, SNMP, stackable, VLAN Support

communication mode : Full-Duplex & Half-Duplex

switch capacity : 132

brand name : /

model number : ICX7150-24P-2X10G

place of origin : Shanghai, China

Place of Origin : China

Warranty : 1 Year

PoE Ports : 24 Port Support PoE

Condition : 100%new

MOQ : 2 pieces

Price : CN¥5,780.32/pieces 2-9 pieces

Contact Now

Product Description

Specification

Product Description

Switching capacity (data rate, full duplex)	132 Gbps
Forwarding capacity (data rate, full duplex)	98 Mpps
10/100/1000 Mbps RJ45 downlinks	24
100/1000 Mbps/2.5 Gbps RJ45 downlinks (full duplex only)	-
10/100/1000 Mbps RJ45 uplinks (full duplex only, no PoE)	2
1/10 Gbps SFP/SFP+ uplinks	4
PoE/PoE+ ports	24
PoH / PoE / PoE+ ports	-
Dual hot-swap power supplies	-
Maximum PoE Class 3 ports (15.4 W per port)	24
Maximum PoE+ Class 4 ports (30 W per port)	12
Base IPv4/v6 Layer 3 routing1 (static routing, RIP)	yes
Advanced IPv4/v6 Layer 3 routing1 (OSPF, VRRP, PIM, PBR features)	With license
Aggregated stacking bandwidth1(data rate, full duplex)	480 Gbps
Stacking density1(maximum switches in a stack)	12
Stacking ports1(maximum ports2 usable for stacking)	Up to 4×10 GbE SFP+
Maximum stacking distance1(distance between stacked switches)	10 km
Power inlet (AC)	C14
Input voltage/frequency	AC: 100 to 240 VAC @ 50 to 60 Hz
Power supply rated maximum (AC)	525 W
PoE power budget (AC)	370 W
Airflow	Side-to-back
Net Weight (Kg)	4.93
Connector options	* 10/100/1000 Mbps RJ-45 * 1 Gbps SFP ports * 1/10 Gbps SFP+ ports * Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 * Console management: RJ45 serial port and USB Type-C port with serial communication device class support * File transfer: USB port, standard-A plug
Dimensions (mm)	440 (W)280 (D)43.65 (H)
MTBF(25°C)	397,428 hours

Company Profile

Packing & Delivery

FAQ

hotselling

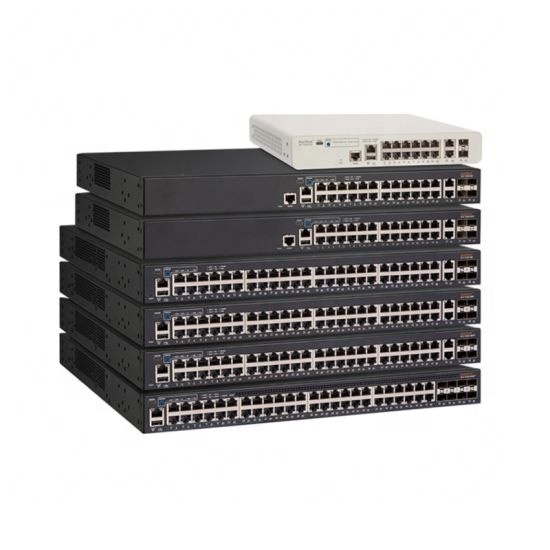

24 Port PoE Switch with 2x10 GBE Uplinks and Full-Duplex Half-Duplex Communication Ruckus ICX7150-24P-2X10G Entry-Level Access Images
